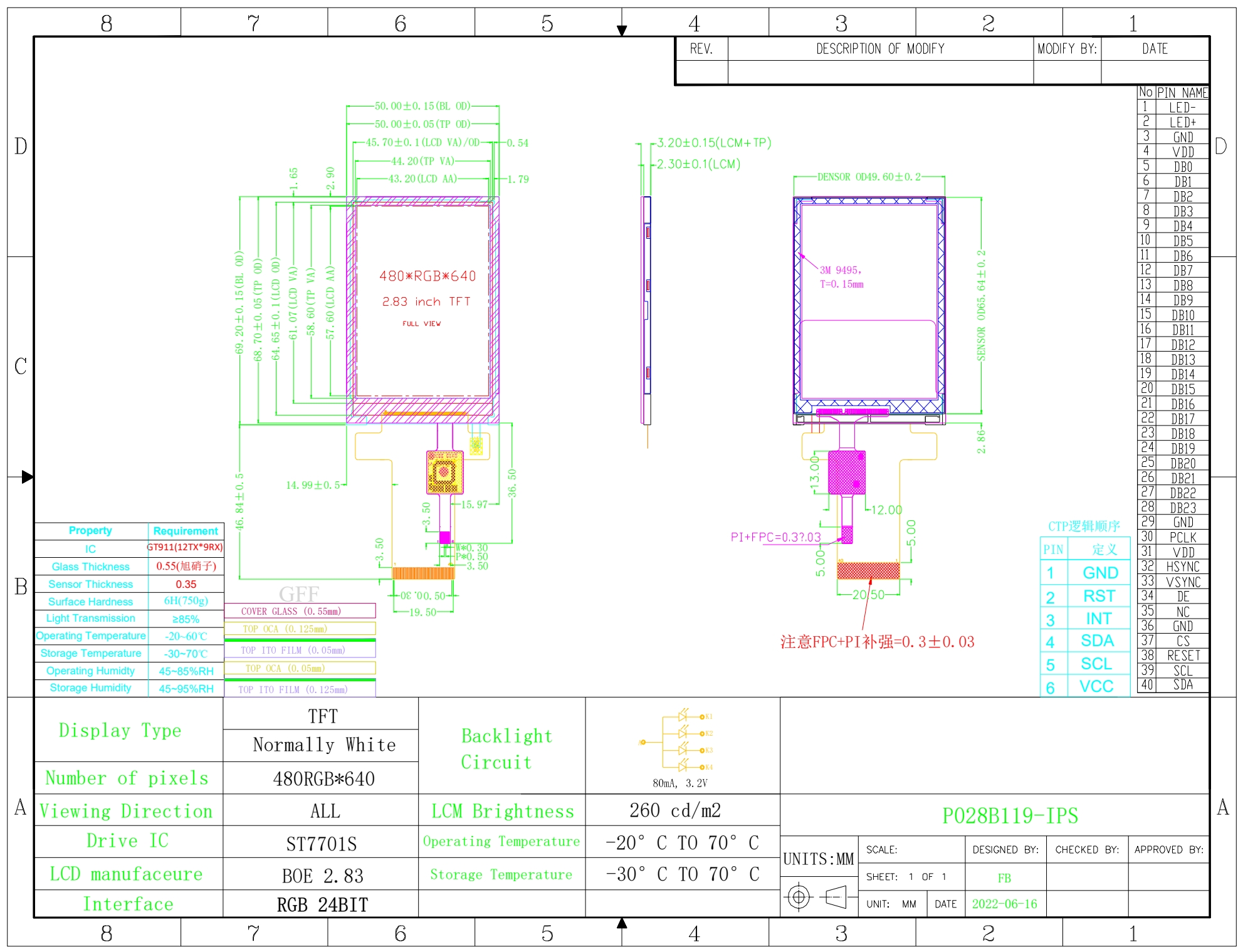

Parameter:
| Model | P028B119-IPS-CTP |
| Screen Size | 2.8 inch |
| Number of Pixel | 480RGB(H)x640(V) |
| Pin | 40 pin |
| Display area | 43.20(H)x57.60(V)mm |
| Pixel pitch | 0.09(H)x0.09(V)mm |
| Outline Dimension | 50.00x69.20x3.20mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1000:1 |
| Interface | RGB 24bit |
| Back-light | LED Side-light type |
| LCM IC | ST7701S |
| CTP IC | GT911 |
| Operation Temperature | -20~70 |
| Storage Temperature | -30~80 |

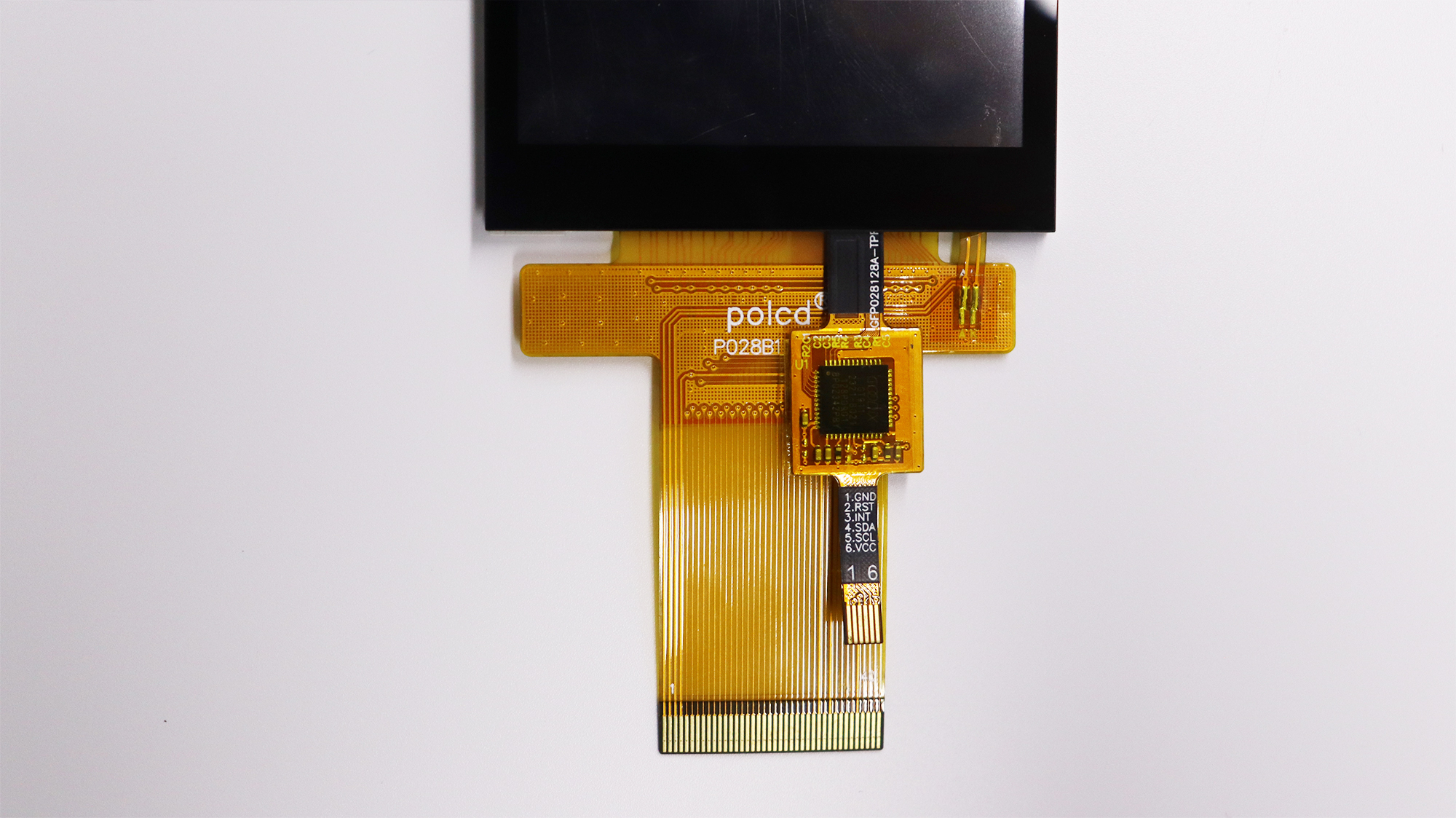

Introducing the 2.8-inch 480x640 TFT LCD Display:
1. Display Size and Resolution: The display features a 2.8-inch screen size, allowing for a compact form factor while still providing a comfortable viewing experience. With a resolution of 480x640 pixels, it offers crisp and clear images, text, and graphics.
2. TFT Technology: The display utilizes Thin-Film Transistor (TFT) technology. TFT ensures vibrant colors, high contrast, and excellent image quality, making it ideal for multimedia applications, gaming, and graphical interfaces.
3. Wide Viewing Angle: The TFT LCD screen provides a wide viewing angle, allowing users to view the content clearly from different perspectives. This feature is particularly useful for applications where multiple viewers need to access the displayed information simultaneously.
4. High Brightness and Contrast: The display offers high brightness levels, ensuring good visibility even in bright ambient lighting conditions. Additionally, it provides a high contrast ratio, delivering sharp and vivid visuals with enhanced detail and depth.
5. Touchscreen Capability: The 2.8-inch TFT LCD display may incorporate a touchscreen functionality, enabling intuitive and interactive user input. Touchscreen features enhance user experience by supporting gestures, multi-touch, and precise input for various applications such as industrial control systems, portable devices, and consumer electronics.
6. Compact and Durable Design: The 2.8-inch TFT LCD display is designed to be compact and lightweight, making it suitable for space-constrained applications. It also boasts durability, with a robust construction that can withstand moderate environmental conditions and resist damage from daily use.
7. Energy Efficiency: The display is energy-efficient, consuming low power during operation. This characteristic is advantageous for devices powered by batteries or applications where power consumption needs to be minimized.
