Polcd Custom 3.5 Inch Capacitive Touch Panel 320x480 500nit RGB interface IPS Tft Lcd Display Module

Brand Name : Polcd

Model Number : P035M083-IPS-CTP

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability : 25,000 PCS per day

Delivery Time : 1-7 working days

Packaging Details : FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Resolution : 320*480

Interface : 3W 18Bit RGB

Driver IC : ST7796U

Brightness (cd/m²) : 500 nit

Viewing Angle : IPS all view angle

Display area : 48.96(H)x73.44(V)mm

Contact Now

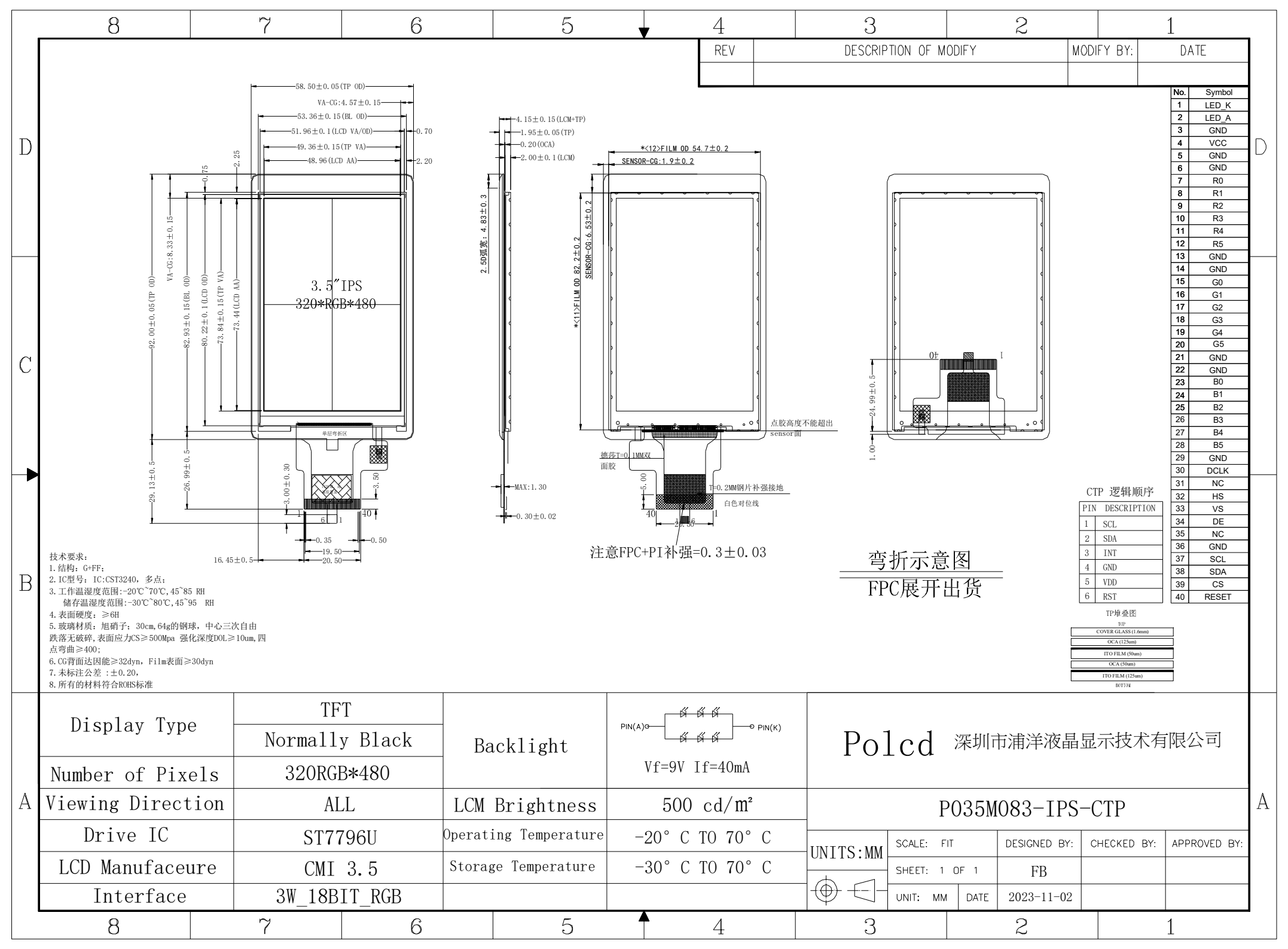

Parameter:

Item Specification
Model P035M083-IPS-CTP
Screen Size 3.5 inch
Number of Pixel 320RGB(H)x480(V)
Display area 48.96(H)x73.44(V)mm
Pixel pitch 51(H)x153(V)um
Pins 40 pins
Outline Dimension 58.50x92.00x4.15mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Gray inversion direction --
Display Color 262K
Luminance(cd/m2) 500 nit
Contrast Ratio 700:1
Surface treatment --
Interface 3W 18Bit RGB
Back-light LED Side-light type
Drive IC ST7796U
CTP IC CST3240
Operation Temperature -20~70℃
Storage Temperature -30~80℃
