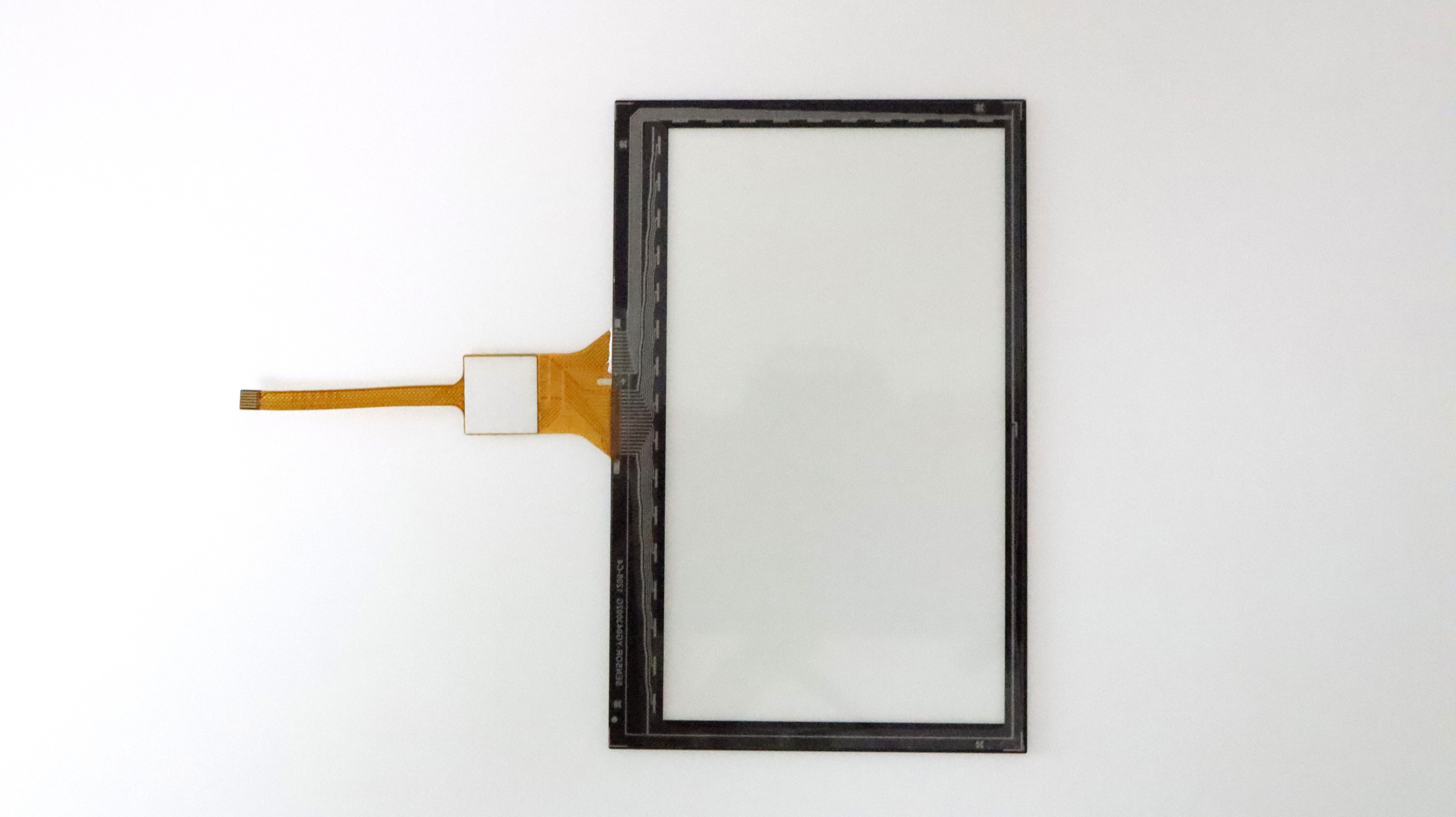

480*272 Resolution 4.3 Inch Capacitive Touch Screen G+G Gt911

Brand Name : Polcd

Model Number : CTP-P043007GG

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal

Supply Ability : 500,000 piece per week

Delivery Time : 5-8 working days

Packaging Details : 20 cm * 18 cm * 13 cm

Product name : Capacitive Touch Screen Panel

Size : 4.3 inch

View Area(mm) : 95.64(W)*54.46(H)

Structure : G+G

Interface : IIC

Driver Ic : GT911

LCM Resolution : 480*272

Transmittance : ≥85%

Contact Now

Polcd 4.3 Inch LCD Touch Panel 480*272 Resolution G+G LCD Display GT911 Capacitive Touch Screen

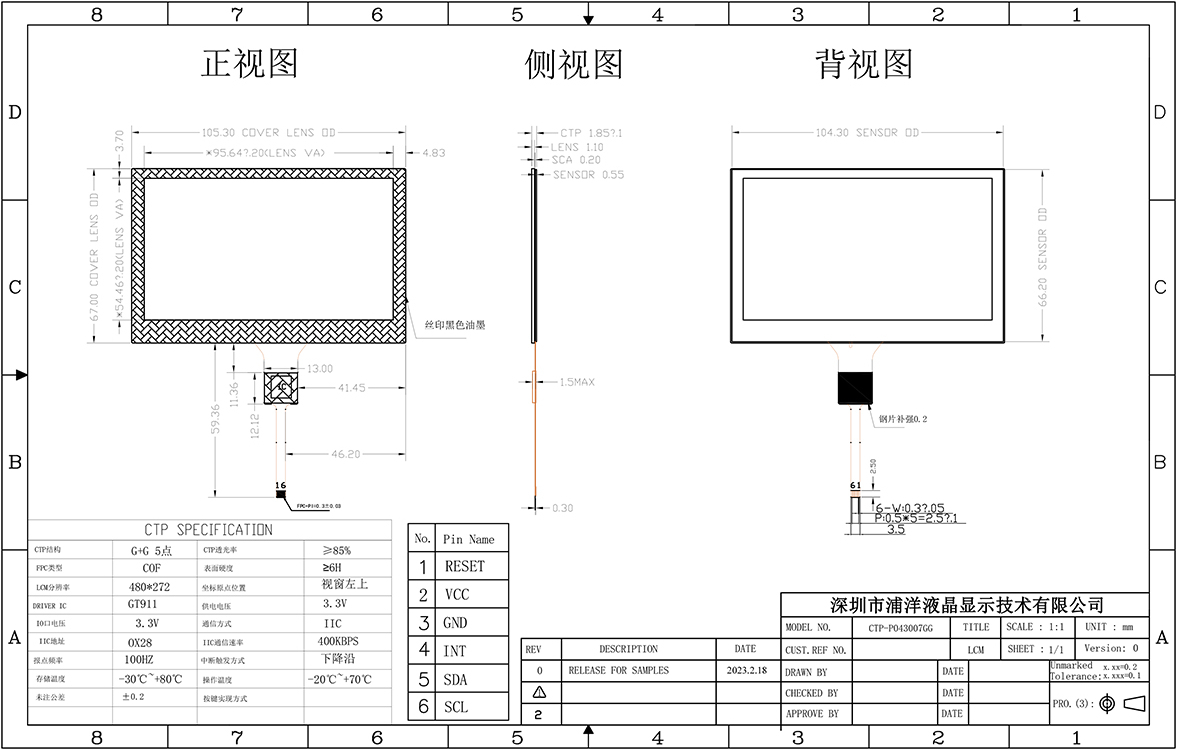

Product Parameter:

Product Name 4.3” Capacitive Touch Screen
Brand Polcd
Model CTP-P043007GG
Size 4.3 inch
LCM Resolution 480*272
View Area(mm) 95.64(W)*54.46(H)
Structure G+G
Drive IC GT911
PIN 6 pin
Interface I2C
Transmittance ≥85%
Surface hardness ≥6H
FPC COF
Unfilled size tolerance ±0.2mm
Operating Voltage 3.3V
Operating temperature -20℃~+70℃
Storage temperature -30℃~+80℃
Certification RoHS
Warranty 1-2 years



How to apply 4.3-inch touch screen to TFT LCD?



Choose the right 4.3-inch touch screen and TFT LCD, make sure they are compatible in interface and size.



Connect the touch screen and TFT LCD to the board separately. Touch screens usually need to be connected to a touch screen controller, while TFT LCDs need to be connected to an LCD controller.



According to the specifications of the touch screen and TFT LCD, set up the circuit and software on the board to ensure that they communicate correctly and work together.



Write software drivers so that applications can interact with the TFT LCD through the touch screen. This usually requires the use of specific touchscreen and LCD controller APIs and an understanding of the characteristics and limitations of touchscreens and TFT LCDs.



Test and debug the system to ensure that the touch screen and TFT LCD are functioning properly and that the application responds correctly to user input.

480*272 Resolution 4.3 Inch Capacitive Touch Screen G+G Gt911480*272 Resolution 4.3 Inch Capacitive Touch Screen G+G Gt911480*272 Resolution 4.3 Inch Capacitive Touch Screen G+G Gt911
