Polcd RGB 24 Bit Display 4.3 Inch ST7262E43 800x480 TFT Touch Screen

Name: Polcd RGB 24 Bit Display 43 Inch ST7262E43 800x480 TFT Touch Screen
Brand: Polcd
Price: 1 USD

Buy cheap Polcd RGB 24 Bit Display 4.3 Inch ST7262E43 800x480 TFT Touch Screen product

Brand Name : Polcd

Model Number : P043B018-CTP

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal

Supply Ability : 500,000 piece per week

Delivery Time : 5-8 working days

Packaging Details : 20 cm * 30 cm * 40 cm

Product name : TFT LCD Display

Size (inch) : 4.3 inch 800*480

Viewing Direction(eye) : full view angle

Brightness (cd/m²) : 280

Interface : RGB 24bit

Driver Ic : ST7262E43

Contact Now

Introduction

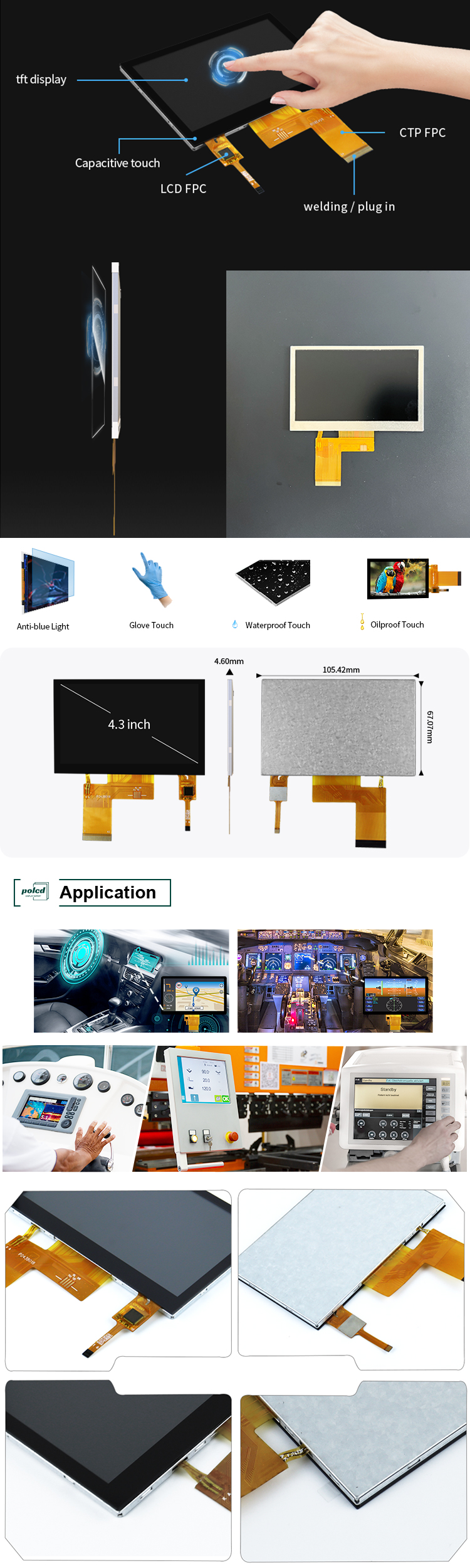

Display model P043B018-CTP is a (TM)Transmissive type color active matrix thin Film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.This Model is composed of a TFT LCD panel, a driving circuit, a back light system. The resolution of a 4.3” contains 800RGBx480 dots and can display up to 262k colors.

Parameter:

Model No.	P043B018-CTP
Screen Size	4.3 inch
Number of Pixel	800RGB(H)x480(V)
Pin	40 pin
Display area	95.04(H)x53.86(V)mm
Pixel pitch	118.8(H)x112.2(V)um
Outline Dimension	105.42x67.07x4.6mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	280 nit
Contrast Ratio	1200:1
Interface	RGB 24bit
Back-light	LED Side-light type
Drive IC	ST7262E43
Operation Temperature	-20~70 ℃
Storage Temperature	-30~80 ℃

Polcd RGB 24 Bit Display 4.3 Inch ST7262E43 800x480 TFT Touch Screen
